Air Showers

Air Showers

Key Features


  • Removes particulate contamination
  • Minimum velocity of 5000 FPM
  • Cleanroom Air Showers are designed to supply ISO Class 5 (Class 100)
    airflow while removing particulate contamination from personnel
    entering a cleanroom.
  • An individual can stand or walk through the chamber and be scrubbed
    by pressurized air from nozzles at a minimum velocity of 5000 FPM.


HEPA Filters

HEPA filtered air flows through wall mounted nozzles and contaminated air is forced through secondary filters located near the floor.

Lighting

Fluorescent lighting is provided in the ceiling.

Voltage

Voltage options are 208-230, 50 or 60 Hz and 440/480 volts, 3 phase, 60 Hz.

Material

Air Showers are made from from a variety of materials including; powder coat steel, stainless steel or customized to your specifications.

Doors are made of high quality anodized aluminum frame with 1/4 inch clear insert and push/pull hardware. The interlock system allows only one door at a time to be open and releases if the power fails.

An optional painted steel finish is available.

Shipping

Air Showers are shipped in wooden crates for on-site assembly.


Product Details

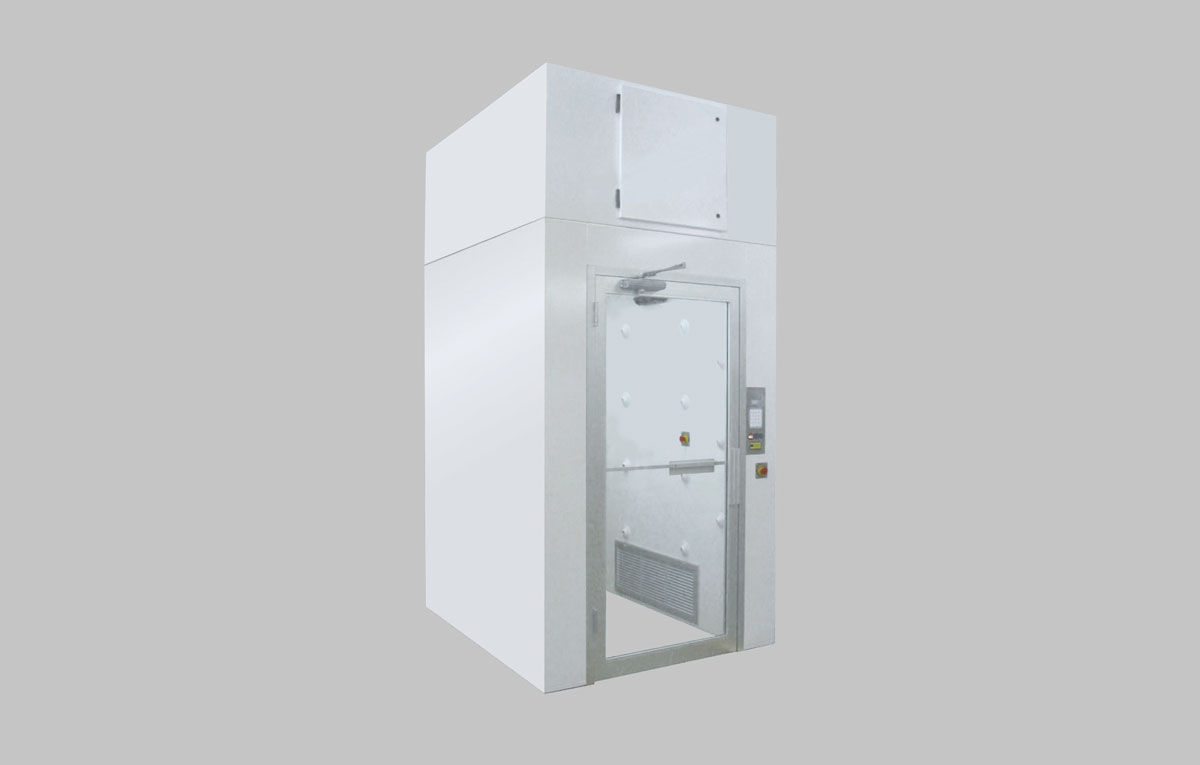

Typical walk through chamber

Typical walk through chamber


Technical Drawings

Technical Drawings

Section A-A

Plan view

Blower unit

Front view


Typical Components

Number

Description

1

Motor/Blower assembly

2

Power control box

3

Emergency release button

4

HEPA Filter 99.97% effective on .3 micron particles

5

Adjustable nozzles

6

Fluorescent light fixture

7

Automatic activated floor switch

8

Anodized aluminum doors with plexiglas windows

9

Microprocessor control panel, On/Off Lights, Reset and Alarm

10

Access panels for easy maintenance

11

Electric interlocking chamber

12

Single connection junction box
